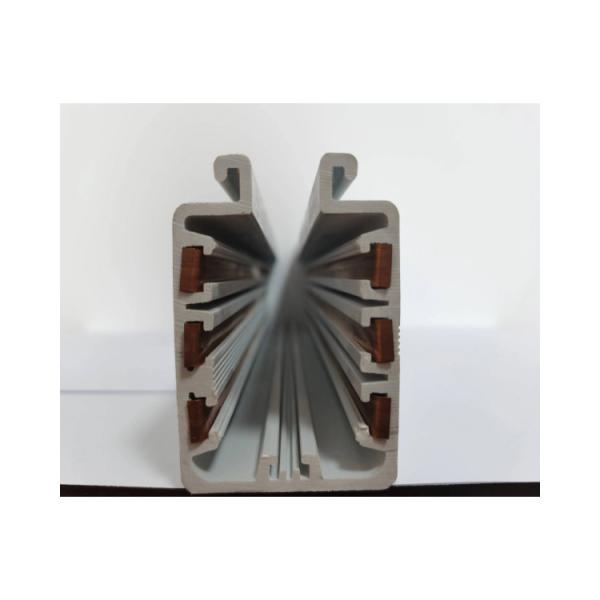

Powerglide Conductor Bar System Manufacturers Aluminum Alloy Lighting Busbar

QIMEI is the manufacturer and supplier of conductor rail system (also known as busbar). As a crane manufacturer or crane operator; you need a robust and inexpensive power supply, which is also easy to install. NANTE supply conductor system (also known as busbar) suitable for indoor and protected outdoor applications. The PVC housing can accommodate different copper cross sections for nominal currents of 40 - 240 A. Special sections enable quick and easy replacement of defective sections.

They are 3, 4, 5, 7 conductor configurations, with factory-mounted flat copper band and spring-operated plug connectors from 40 to 240 A. Compact arrangement, corrosion resistance and simple assembly are its essential features. The conductor systems are suitable for overhead and elongated tracks for cranes, monorails, electric hoists, electric tools, stacking systems, as well as many other applications for supplying power to moving power loads.

Design Features

1. Fast economical mounting with clip-on hanger clamps and several connecting options.
2. Available as 4-, 5- and 7-pole system.
3. Safe design due to covered conductors
4. Small and compact design
5. High system flexibility
6. Protected conductor arrangement
7. Little installation space required
8. Horizontal installation
9. Different connecting systems to suit installation and operation conditions.

Standard application data

1. Nominal Current (at 100% duty cycle) [A]: 10 | 35 | 60 | 100 | 140
2. Voltage Grade [V]: 690
3. Rail Length [mm]: 4000
4. External Dimensions [mm]: 56 x 73
5. Operating Conditions: for indoor and outdoor applications
6. Track Configuration: straight tracks / curved segments on request

Main Applications

1. Crane systems,
2. Transfer carriages,
3. Tasksaver systems,
4. Electric hoisting equipment,
5. Theater applications and a variety of other mobile consumers for indoor and outdoor use, ideally suited for straight tracks.
